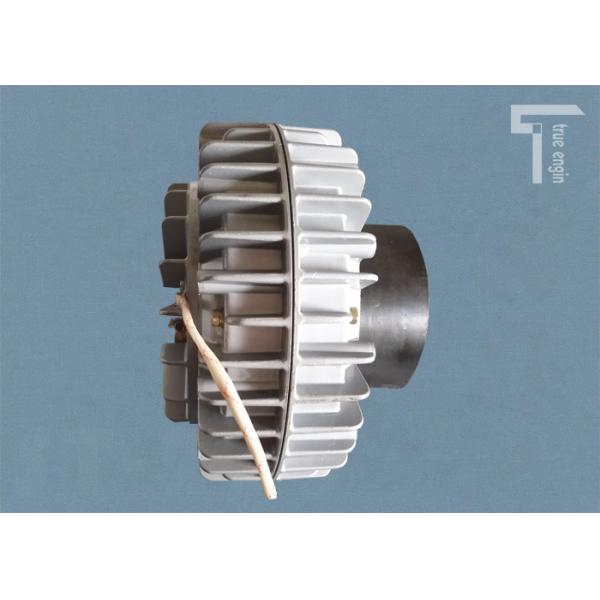

Flange Shell Magnetic Powder Clutch 25NM Speed 1800 Alternative
Mitsubishi
Featured advantages
1. Fast response. Dry design means instant reaction to commands.
2. Durability. Excellent heat dissipation and quality materials
mean long life, even under high frequency and high performance
conditions.
3. Easy to install and maintain. Sealed bearing race eliminates the
need for removal of the center core. No dust brush is needed, and
operation is simper and easier.
4. No adjustment of the motor. The motor is designed so that it
does not need adjustment of the friction surface, and once it is
installed only very minor adjustments are needed.
5. Sure motion. One-piece plate will not slip even under the
strongest vibration for longer life.
6. Adjustable torque. Torque levels can be increased or decreased
by changing the current, making it suitable for a variety of
applications.
| Model | Torque NM | Voltage
V | Current
A | Speed
rpm/min | Slip power
w | Outline dimention |
| D | L |
| ZA-0.6A | 6 | 24 | 0.3 | 1800 | 130 | 128 | 86 |
| ZA-1.2A | 12 | 24 | 0.39 | 1800 | 320 | 160 | 103 |
| ZA-2.5A | 25 | 24 | 0.73 | 1800 | 450 | 180 | 119 |
| ZA-5A | 50 | 24 | 0.94 | 1800 | 700 | 220 | 150 |
| ZA-10A | 100 | 24 | 1.21 | 1800 | 900 | 275 | 166 |
| ZA-20A | 200 | 24 | 1.9 | 1000 | 1900 | 335 | 198 |
| ZA-40A | 400 | 24 | 2.2 | 1000 | 2600 | 360 | 258 |
| Model | Hollow shaft size | Flange size | Fixed stator Size |
| d(H7) | b(F8) | L1 | L2 | L3 | d1*depth | D1(g7) | D2 | D3 | D4 | L4 | d2*depth |
| ZA-0.6A | 15 | 4 | 4 | 21 | 21 | M6*10 | 70 | 60 | 60 | 82 | 7 | M4*8 |
| ZA-1.2A | 18 | 5 | 5 | 25 | 32 | M6*10 | 80 | 68 | 68 | 96 | 13 | M6*8 |
| ZA-2.5A | 20 | 5 | 5 | 26 | 36 | M6*10 | 90 | 80 | 80 | 114 | 17 | M6*8 |
| ZA-5A | 30 | 7 | 7 | 31 | 48 | M8*12 | 110 | 95 | 95 | 150 | 20 | M8*12 |
| ZA-10A | 35 | 10 | 10 | 32 | 48 | M10*18 | 125 | 110 | 110 | 176 | 18 | M10*18 |
| ZA-20A | 45 | 12 | 12 | 45 | 59 | M10*18 | 160 | 140 | 140 | 200 | 21 | M10*18 |
| ZA-40A | 50 | 14 | 14 | 50 | 68 | M10*18 | 160 | 140 | 140 | 200 | 21 | M10*18 |
Packing and delivery:
1. Neutral carton packing
2. One piece in one carton box
3. One unit shipping
4. Lead time:within 3 days
